Why precise set-up is essential for accurate ADAS calibration

Advanced Driver Assistance Systems (ADAS) have become a defining feature of the modern vehicle. What began as basic lane departure warnings and forward collision alerts has evolved, rapidly, into sophisticated sensor networks capable of making split-second decisions across multiple axes simultaneously. Radar, LiDAR, stereo cameras, ultrasonic sensors — today’s vehicles are equipped with systems that communicate with each other in real time, each one feeding data into a shared picture of the road ahead.

That sophistication has raised the stakes for everyone in the repair chain. As ADAS systems have become more capable, they have also become less forgiving. The tolerances within which these systems operate have tightened considerably. Where an older single-camera lane-keeping system might tolerate a small degree of positional variance without material consequence, a current-generation system integrating multiple forward-facing cameras, a wide-angle radar, and a LiDAR unit operates within angular tolerances measured in fractions of a degree. The calibration process – and crucially, the set-up that precedes it – must reflect that reality.

Why precise set-up matters

There is a common misconception in the industry that calibration is primarily a software event: connect the tool, run the procedure, confirm the pass. In practice, the accuracy of any static ADAS calibration is almost entirely determined before the calibration software is even launched – by the precision of the physical set-up.

Static calibration requires the vehicle to be positioned correctly relative to a target or calibration frame, and the target or frame to be positioned correctly relative to the vehicle. Both conditions must be satisfied simultaneously.

The vehicle’s thrust axis – the geometric line along which it naturally travels – must be identified and used as the reference for all measurements. The calibration frame and its targets must then be aligned to that axis, at the correct distance and height, within the tolerance the manufacturer specifies.

The challenge is that error accumulates. A vehicle positioned slightly off its centre line on the workshop floor. A frame that is one degree out of plumb. A target positioned using a tape measure that was not pulled taut. Each of these introduces a small, often invisible, positional error – and those errors do not cancel each other out. They compound.

The gap between ‘successful’ and ‘accurate’

This is where the most significant risk in current ADAS calibration practice sits. A calibration tool can return a pass status – the procedure completed, no fault codes stored – while the camera or sensor it has calibrated remains pointed at the wrong part of the road. The tool does not know where the vehicle is in the room. It does not know whether the thrust axis was correctly identified. It does not verify that the target was at the right distance. It accepts the image the camera presents and calibrates to it.

A misaligned target produces a misaligned sensor. A misaligned sensor produces incorrect data. And incorrect data, fed into a system designed to intervene in an emergency, can produce an incorrect response – or no response at all – at the moment it is needed most.

This distinction between a successful calibration and an accurate one is not academic. It is the practical consequence of treating set-up as a secondary consideration.

Responsibility in the UK and European context

UK and European bodyshops operate within a framework that places clear responsibility on the repairer for returning a vehicle to a roadworthy and safe condition. Where ADAS systems have been affected – whether through windscreen replacement, structural repair, suspension work, or any intervention that disturbs a sensor or its field of view – recalibration is required. That requirement is not discretionary.

More significantly, the obligation does not end with the production of a calibration report. The vehicle owner, insurer, and ultimately the road-using public are relying on the repairer to have carried out that calibration to the manufacturer’s standard – not merely to have generated a document showing a procedure was run.

The legal and ethical exposure of a ‘successful’ calibration that was not accurate is considerable, particularly in the event of a collision where ADAS function or failure is a factor.

Industry frameworks, including IIR – Insurance Industry Requirements for the safe repair of ADAS equipped vehicles guidance – from Thatcham Research, and manufacturer position statements, are increasingly explicit on this point: calibration must be carried out using approved equipment, following the manufacturer’s procedure, with set-up conditions that meet the specified requirements.

Getting it right – and verifying it

The answer is process discipline. Identifying the thrust axis correctly. Using a calibration system that provides verified positioning guidance rather than relying on operator estimation. Checking frame alignment before beginning the procedure. Documenting set-up conditions alongside the calibration result.

But process discipline is easier to mandate than to guarantee – particularly in a busy bodyshop or workshop environment where time pressure is real, and errors in set-up are not always visible to the operator performing the work.

There is another precondition that is widely overlooked: Every vehicle manufacturer includes correct wheel geometry in their ADAS calibration prerequisites – because a vehicle with incorrect tracking or alignment cannot present a consistent thrust axis, and a calibration performed on that basis is compromised from the start. In reality, very few bodyshops and workshops verify geometry before proceeding. The check is time-consuming, it requires additional equipment, and it is easy to assume that a vehicle which drives acceptably straight is geometrically correct. That assumption is frequently wrong.

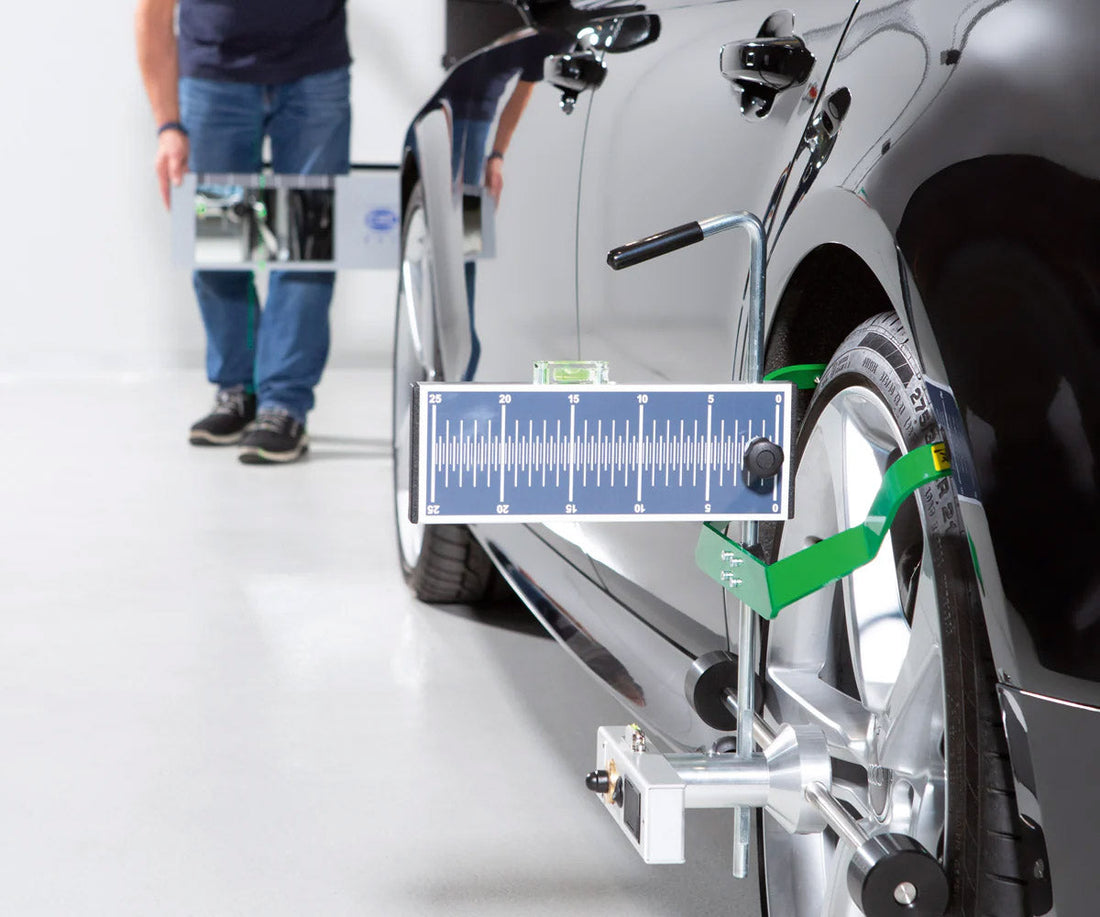

Cloud Link ADAS Pro, the ADAS calibration system developed by Core Diagnostics, removes that gap from the process. Before calibration begins, the system performs an automatic all-wheel alignment check using its advanced wireless sensors – confirming that the vehicle’s geometry meets the manufacturer’s preconditions, not assuming it. Only then does the calibration proceed.

Because the system is cloud-connected, the vehicle and frame alignment data visible to the technician on the workshop floor is simultaneously visible to a remote technician at Core Diagnostics – in real time.

That remote technician holds AOM230 qualification, the industry-recognised standard for ADAS calibration competence, and is able to independently verify that the physical set-up meets the manufacturer’s requirements before the calibration procedure begins.

The result is a calibration that is not only successful in the sense that the software confirms a pass – but it confirms that the calibration was accurate to the vehicle manufacturer’s standards, because the conditions under which it was performed have been independently checked.

For bodyshops, that distinction represents both a quality assurance and a defensible record of due diligence. For the vehicle owner, it means the system protecting them on the road has been calibrated to the standard it was designed for.
