Why correct calibration of 360° cameras and AVM systems is critical

360° and AVM camera systems are now standard across a wide range of vehicles — and their calibration is no longer optional. Whether triggered by a windscreen replacement, a minor impact, or a software update, an incorrectly calibrated system is both a safety issue and a liability risk. This article explains what correct calibration involves, why accessing these systems is becoming increasingly complex, and how Core Diagnostics can help.

What are 360° and AVM systems?

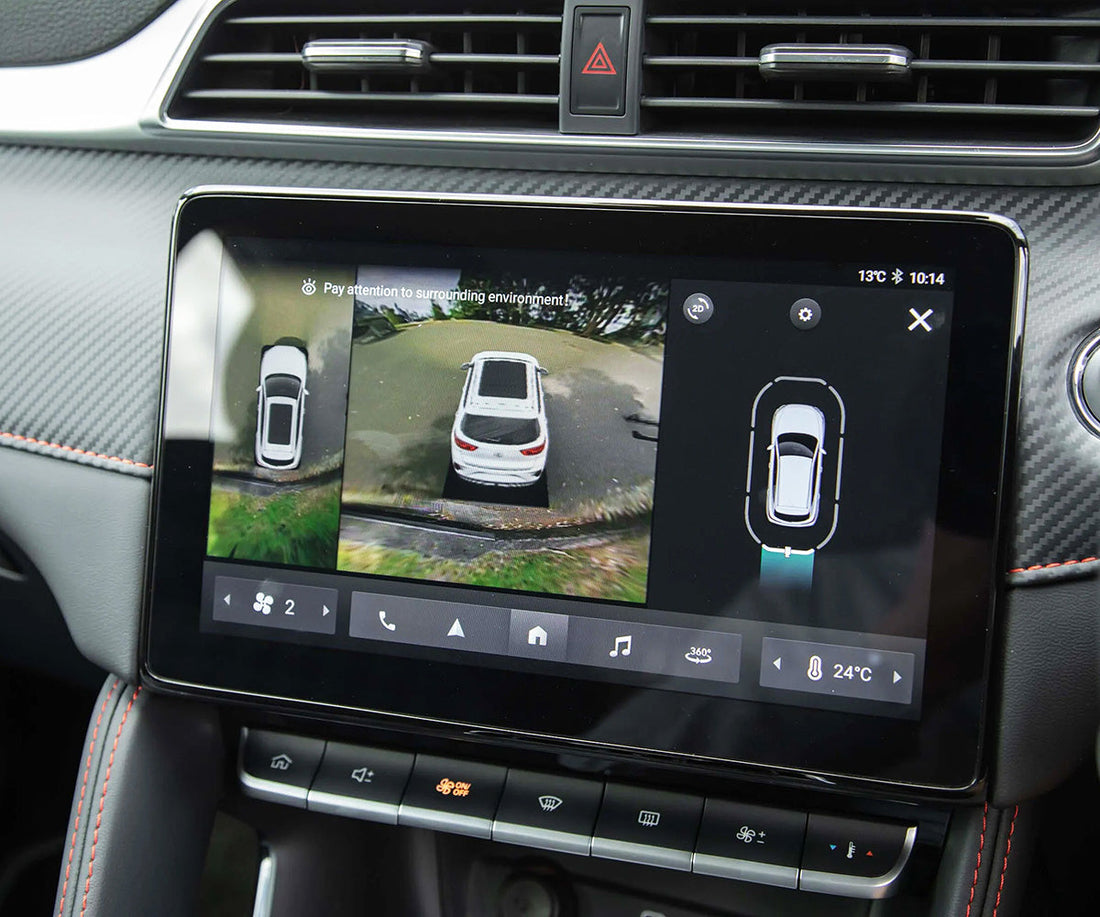

360° Around-View Monitoring systems use a set of typically four wide-angle fish-eye cameras mounted in the front grille, rear bumper, and both door mirrors. Sophisticated on-board processing stitches the feeds together in real time to produce a seamless top-down bird's-eye view of the vehicle and its immediate surroundings, displayed on the infotainment screen.

These systems have evolved well beyond simple parking aids. On many current models they feed live image data directly into lane-keep assist, cross-traffic alert, parking automation, and low-speed collision avoidance — making them an active component of the vehicle's wider ADAS architecture. Any calibration error therefore has the potential to affect multiple safety systems simultaneously.

Calibration is not a one-time factory procedure. It must be performed whenever any of the following occurs:

Misalignment can be subtle enough to escape a visual inspection entirely. A camera shifted by just a few millimetres, or rotated by a fraction of a degree, can introduce stitching seams, ghost images, and perspective errors that affect both the driver's view and any downstream ADAS functions relying on that image data.

The role of specialist calibration mats

Unlike forward-facing ADAS cameras — which typically use a single target board at a defined distance — AVM calibration requires multiple reference targets positioned simultaneously around all four sides of the vehicle. This is where specialist calibration mats are essential.

Calibration mats are precision-printed floor mats bearing high-contrast geometric patterns — typically chessboard grids, circles, or proprietary marker arrays — that the AVM calibration software uses as reference points. The system identifies each known point in the pattern, compares its observed position against the expected geometry, and calculates the correction parameters needed to produce a seamless composite image.

A mat that is creased, faded, incorrectly positioned, or printed to the wrong specification will produce a calibration that appears to complete successfully but contains hidden errors — including mismatched seam lines, incorrect scale in one or more quadrants, rotational distortion, and inaccurate proximity warnings where the AVM feeds into parking sensors.

Vehicle-specific mat kits from Core Diagnostics are manufactured to tight dimensional tolerances and supplied with precise positioning guides, ensuring each mat is placed at the exact offset and angle the system requires. Calibration must always be performed on a flat, level surface, making a dedicated bay with a checked floor essential for consistent results.

Correct mats are only half the equation. The calibration procedure must be driven by diagnostic software that communicates directly with the vehicle's AVM control module — executing the OEM-specified routine, confirming completion, and writing the corrected parameters to the module's memory. And increasingly, simply having the right tool is no longer enough.

Vehicle manufacturers have introduced a range of electronic security measures that are making it progressively harder for workshops to access ADAS calibration functions without manufacturer-approved credentials. The barriers now routinely encountered include:

For independent workshops, keeping pace with this constantly shifting landscape — across tool software, licensing subscriptions, and technical knowledge — represents a significant and ongoing overhead that falls entirely on the workshop.

For many workshops, the most practical and cost-effective solution is to remove the access burden entirely.

Core Diagnostics' remote diagnostic service gives workshops instant access to dealer-trained, IMI-accredited technicians equipped with OEM-level tooling, live manufacturer server access, and security credentials covering more than 75 vehicle brands — without the workshop needing to invest in or maintain any of it.

Rather than paying for rolling software subscriptions and dedicating technician time to staying current with each manufacturer's latest security protocols, workshops simply connect to Core and have the calibration completed remotely — correctly and compliantly.

This is particularly compelling for glass replacement centres and bodyshops handling a high volume of AVM jobs across a diverse vehicle parc, where maintaining in-house access to every manufacturer's security ecosystem is simply not practical.

For workshops that prefer to handle AVM calibrations entirely in-house, Core Diagnostics supplies the latest 360° calibration tools and vehicle-specific mat kits to get the job done quickly and to OEM specification.

Coverage spans a broad range of makes — including many of the newer brands entering the UK market — and every purchase is backed by free expert advice to ensure the right setup for your specific vehicle parc.

Whichever approach suits your workshop — fully in-house, fully remote, or a combination of both for different job types — the output should always be verified visually on completion.

Confirming that seam lines align cleanly, that there are no ghost images or distortions at the joins, and that the vehicle silhouette is correctly proportioned provides the final quality assurance that a diagnostic pass flag alone cannot give.



AVM systems on current vehicles are not convenience features — many are classified as active safety systems integral to the vehicle's ADAS architecture. An incorrectly calibrated AVM feeding erroneous data to a parking automation or collision avoidance system could, in principle, contribute to an incident.

Every calibration — whether completed in-house or via remote support — should be recorded: tool used, software version, completion confirmation, and date. If a vehicle is subsequently involved in an incident and the calibration is questioned, that record is the workshop's primary defence.

Core's remote service generates a full job record for every session as standard; in-house calibrations should be logged with the same rigour.
